Rigid 5-axis machine designed for accurate single-piece production
5-axis machining with 2-axis fork-type milling head or optional indexing and Turning Head.

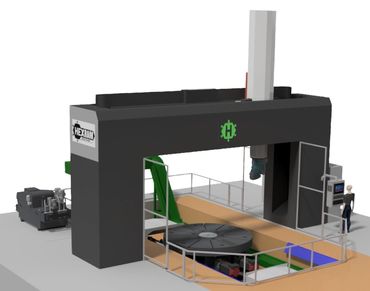

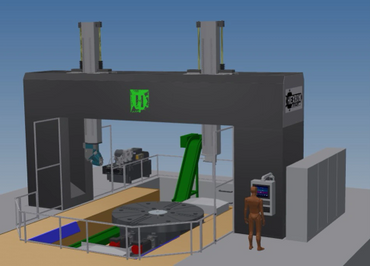

Portal machine for high rigidity and accuracy - Moving Rotary Table
Feed rates up to 800 ipm for stable production

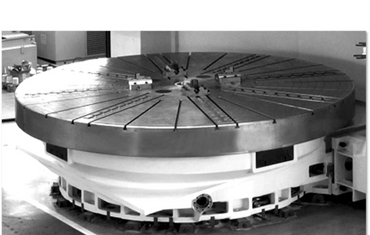

Moving Rotary table from 40" diameter to 16" Diameter
Table rpm to suit Table diameter
Unique closed design of the cross-beam and cross-slide (box-in-box design)
Hexagon ram-type milling unit
Moving Rotary work piece for the highest surface qualities
Very compact machine with large working area utilizing minimal floor-space
High productivity - roughing and finishing operations in one set-up
Ergonomic configuration - floor-level access to the machine tool interior
Tooling and Spindle taper to customer's requirements.
Tool Changer capacity 30 (Optional 40 - 120 tools)
Dual Chain Link Chip Conveyors
4 feet of travel between spindle nose and clamping surface (5 to 6 feet optional)
100 Ton Table load capacity
Positioning accuracy 0.0008"/39.37"
Repeatability 0.0004/39.37".
