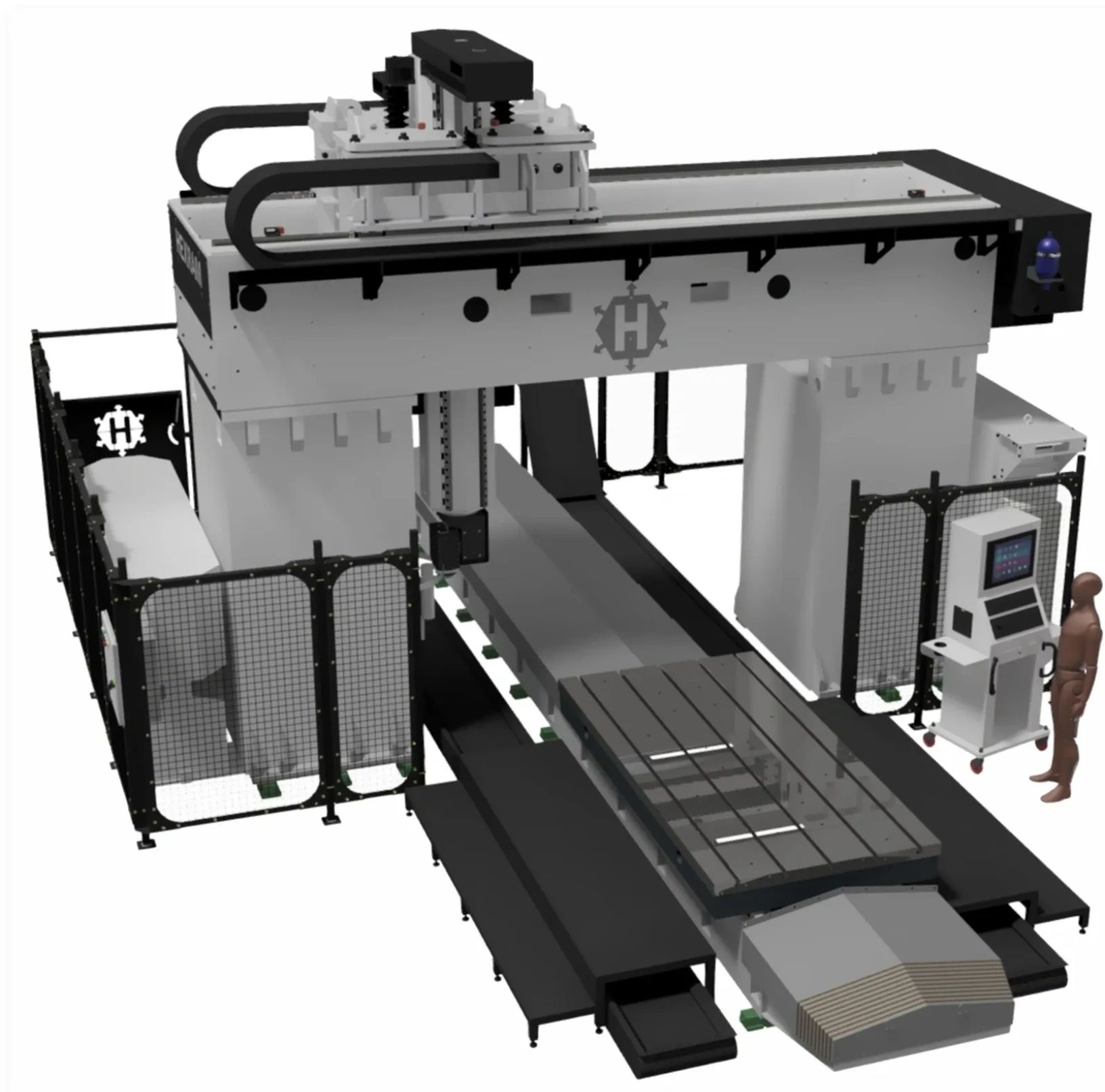

Moving Table Series (MT)

Rigid 5-axis machine designed for accurate single-piece production

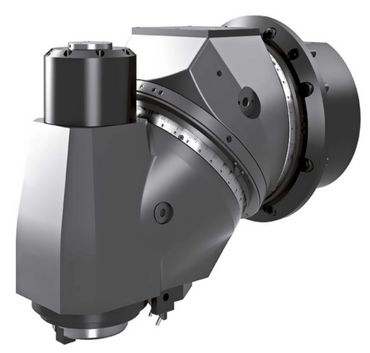

5-axis machining with 2-axis fork-type milling head or optional indexing head.

Fixed Bridge and moving Table for high rigidity and accuracy

Feed rates up to 1000 ipm for stable production

Unique closed design of the cross-beam and cross-slide (box-in-box design)

Hexagon ram-type milling unit

Moving work piece for the highest surface qualities

Very compact machine with large working area utilizing minimal floor-space

High productivity - roughing and finishing operations in one set-up

Ergonomic configuration - floor-level access to the machine tool interior

Spindle tapers to Customers Requirements

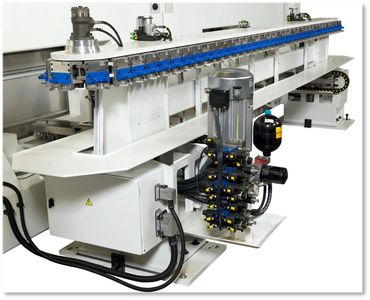

Tool Changer capacity 30 (Optional 40 - 120 tools)

Dual Chain Link Chip Conveyors

Min 3 feet of travel between spindle nose and clamping surface (up to 8 feet optional)

10 to 100 Ton Table load capacity

Positioning accuracy 0.0005"/39.37"

Repeatability 0.00016/39.37".
